Track Busway Rectangle Configurations

The Track Busway Rectangle System provides total design freedom, enabling users to add, move, or subtract elements such as power drops and lighting fixtures.

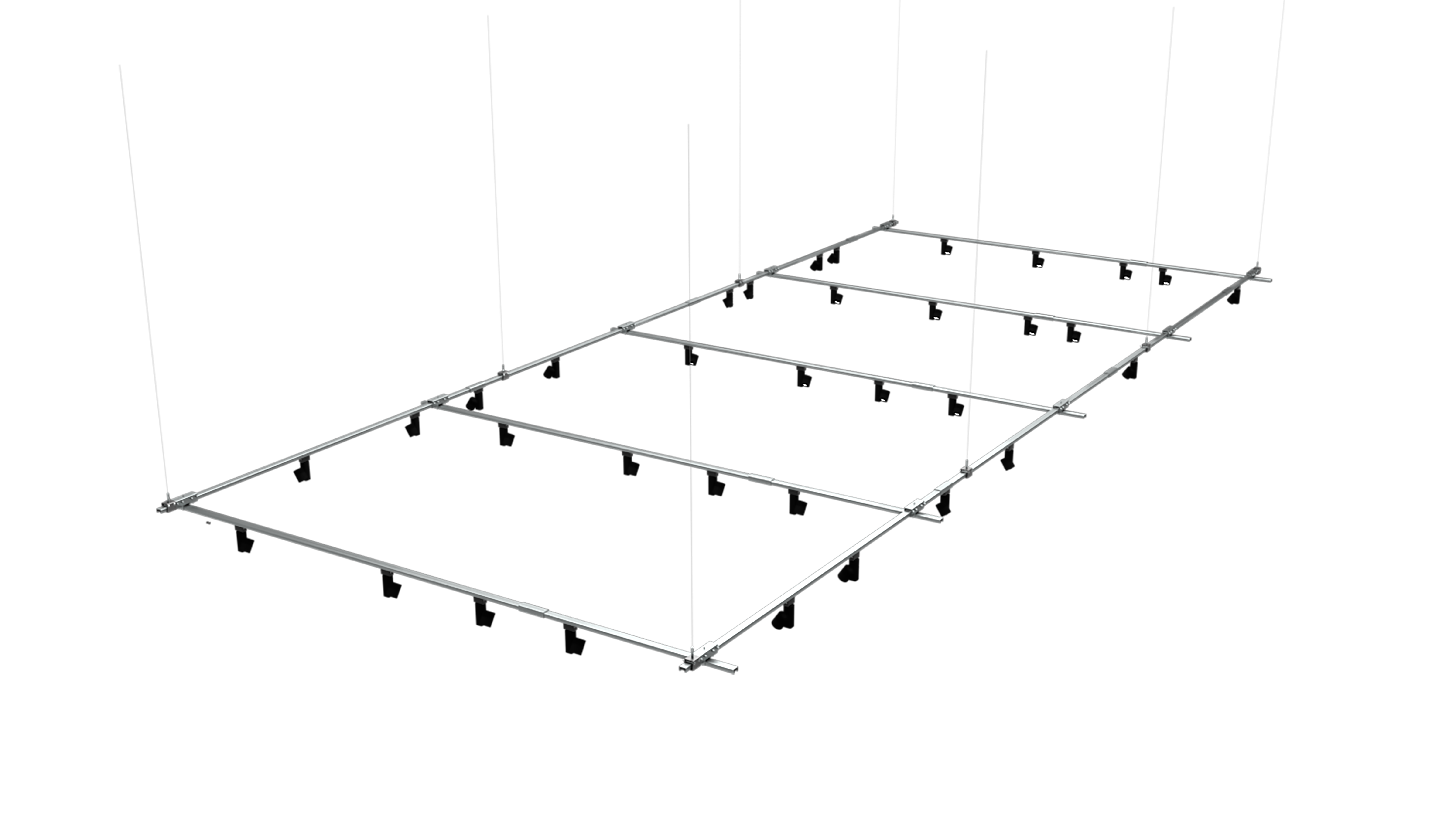

TYPICAL RECTANGLE CONFIGURATION - Image 2

TYPICAL RECTANGLE CONFIGURATION

USA Track Busway™
Kit – Choose Your Attachments
15′ x 29’6″ / 442.5 ft^2

Ships from Ohio in 7 to 10 Working Days

Color

Attachments

Clear

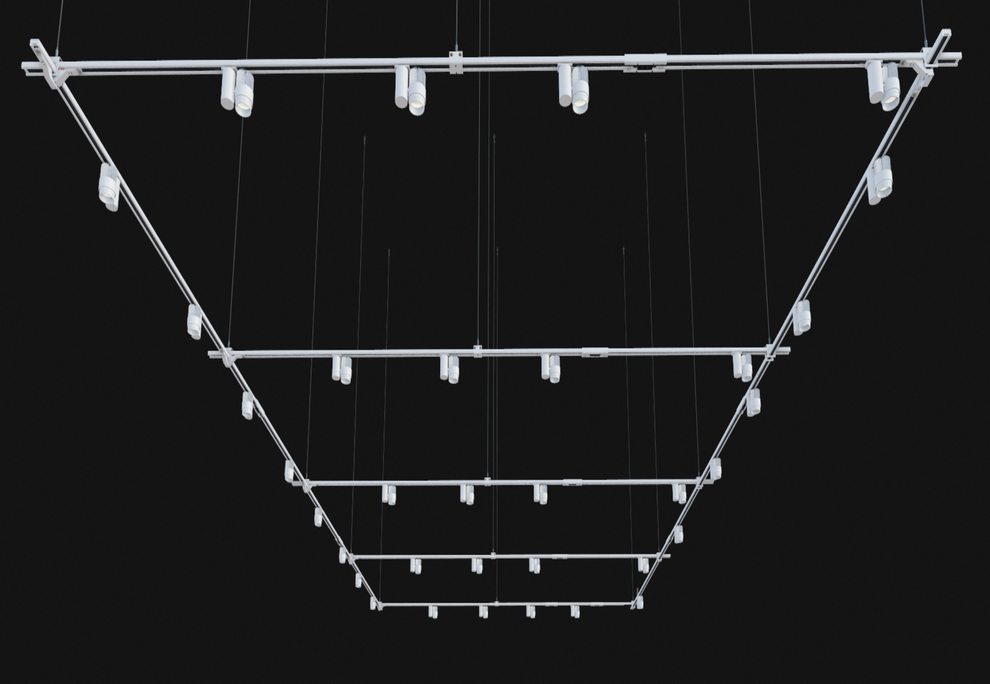

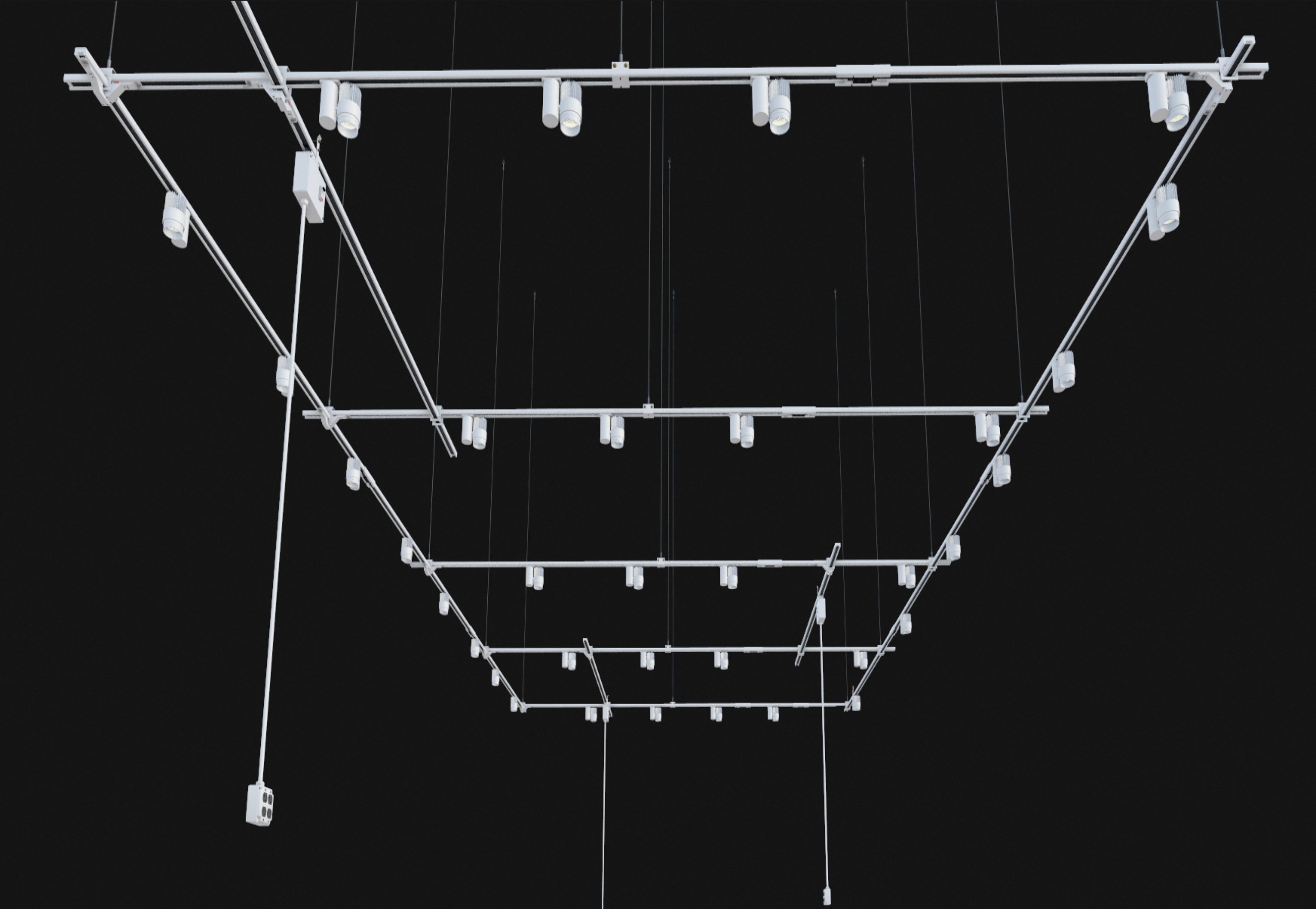

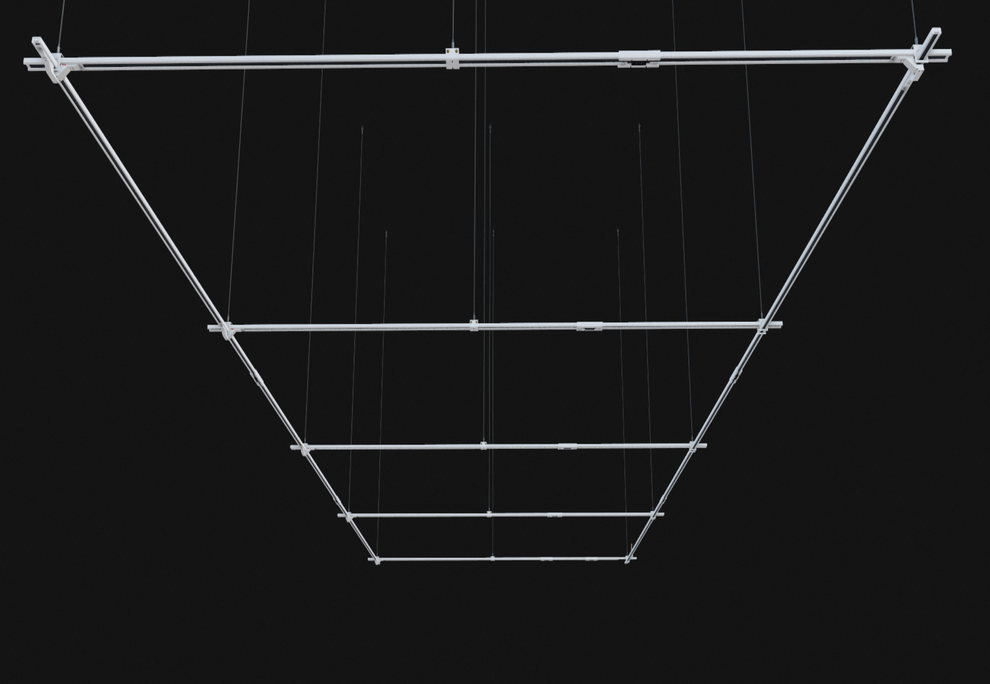

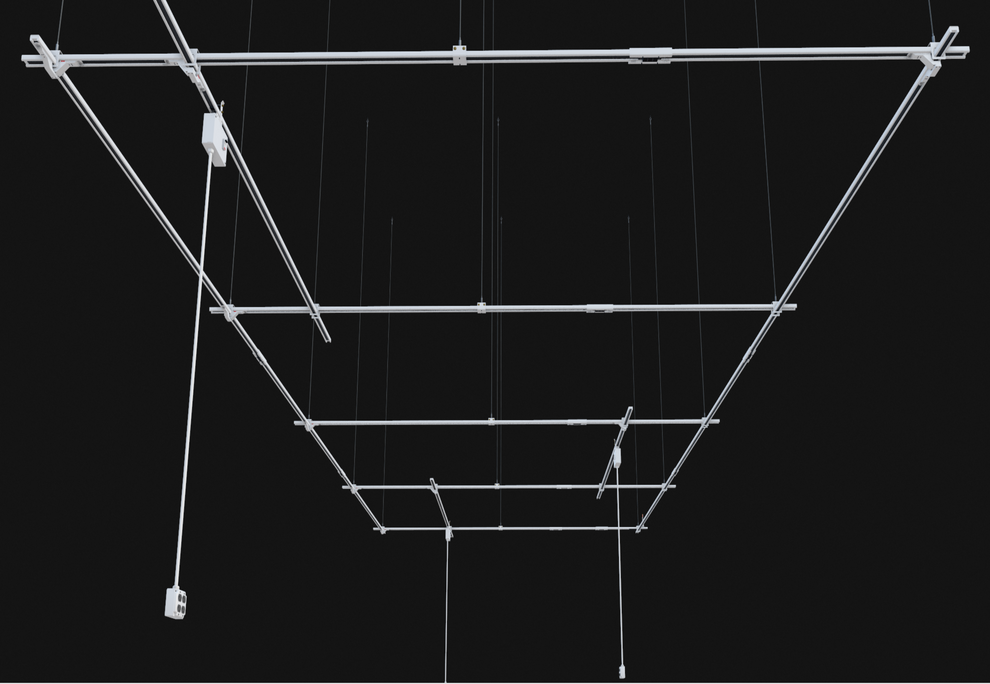

This configuration represents a typical rectangular ceiling light setup; however, the modular system’s adaptability allows for customized layouts that can grow with your project requirements.

Sale!

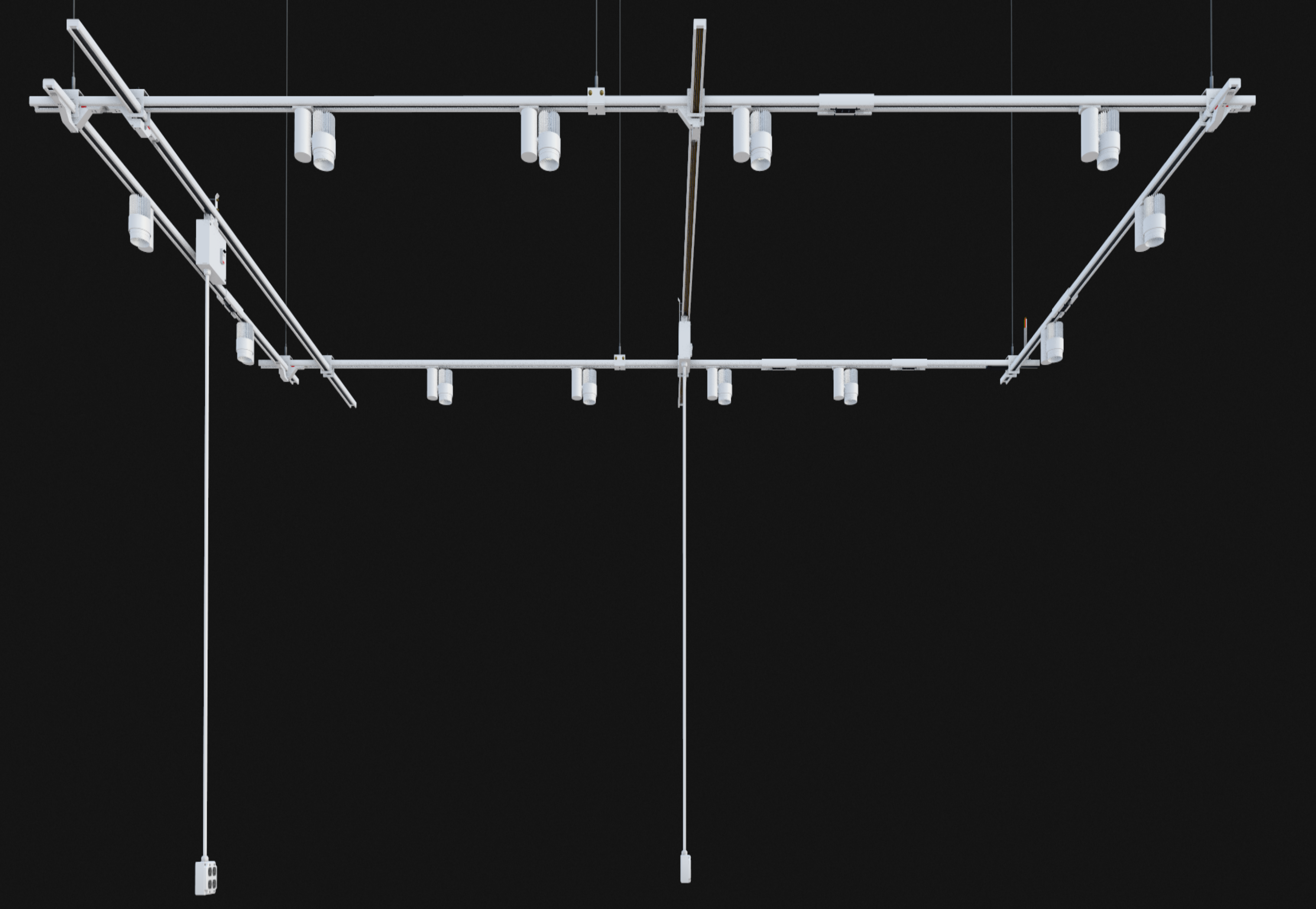

TRACK BUSWAY RECTANGLE SYSTEM – SMALL – 15′ x 8′
Original price was: $30.00.Current price is: $20.00. Select options This product has multiple variants. The options may be chosen on the product page
Sale!

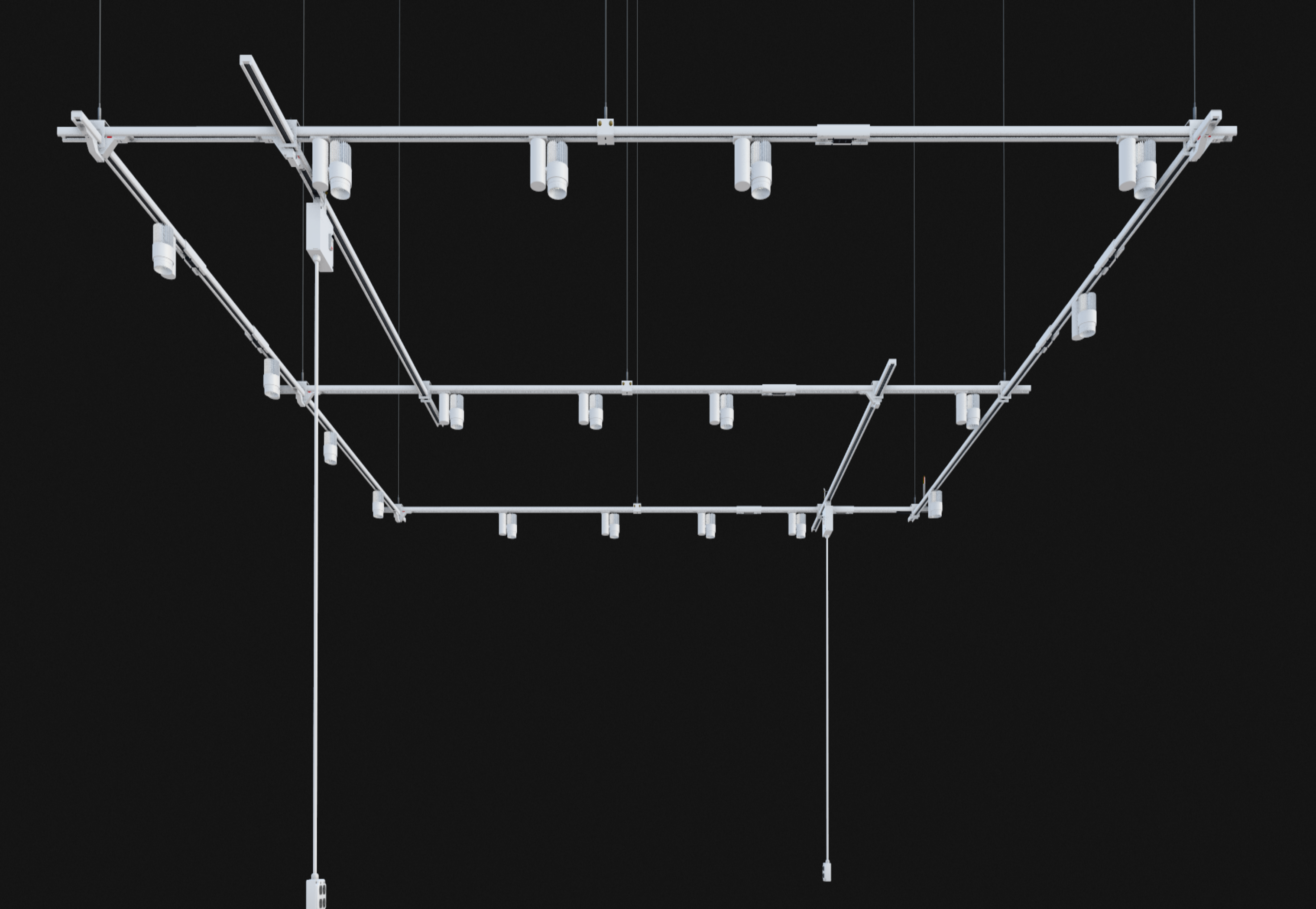

TRACK BUSWAY RECTANGLE SYSTEM – MEDIUM – 15′ x 15’6″
Original price was: $30.00.Current price is: $20.00. Select options This product has multiple variants. The options may be chosen on the product page
Sale!
TRACK BUSWAY RECTANGLE SYSTEM – LARGE – 15′ x 29’6″
Original price was: $30.00.Current price is: $20.00. Select options This product has multiple variants. The options may be chosen on the product page

TRACK BUSWAY RECTANGLE SYSTEM - LARGE - 15' x 29'6"

TRACK BUSWAY RECTANGLE SYSTEM - MEDIUM - 15' x 15'6"

TRACK BUSWAY RECTANGLE SYSTEM - SMALL - 15' x 8'

STEEL Track Busway

NRTL listed to UL 857 Busway Standards.
Minimize home-run feeds with 160A feeder capacity (4 x 40amp circuits)
Built-in code compliance with protection from fuses / breakers
120V, 208Y, 277V, and 408V compatible.
Open slot accessibility for ease in re-locating / adding elements.

Overhead Power Distribution

Steel Track Busway is not simply lighting track, it is a power distribution system. Because of this, Steel Track Busway is capable of delivering power to items beyond just light fixtures (such as power drops to floor fixtures, etc). This is unlike mere lighting track, which per the National Electrical Code, Article 410.151A, allows for only lighting fixtures to be used with track.
